New MCM TANK.G 2000 | 5-Axes Horizontal Machining Center
Have one to sell?
ConditionNew
New

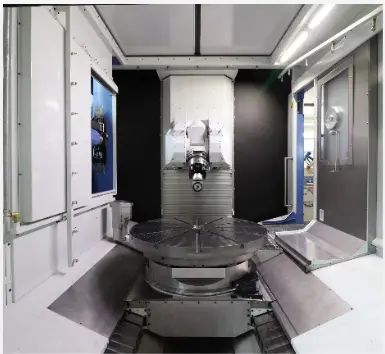

TANK.G 2000: the medium size machining center of the TANK.G line
TANK.G 2000 is characterized by the value of the X-axis stroke of 2.000 mm and by the dimensions of the pallet: 1.000 x 1.000 mm, 1.250 x 1.250 mm,
Ø 1000 mm or Ø 1.250 mm.
metric | imperial
TANK.G 2000
Axes Configuration - 5-Axes
Process Technology - –
Working Area
X-Axis Stroke - mm | in. - 2.000 | 78.7
Y-Axis Stroke - mm | in. - 1.700 | 66.9
Z-Axis Stroke - mm | in. - 2.000 | 78.7
X/Y/Z Axis Rapid Feed - m/min | ipm - 45 | 1,771.7
Pallet
Option 1 - mm | in. - 1.000 x 1.000 | 39.3 x 39.3
Option 2 (2) - mm | in. - 1.250 x 1.250 | 49.2 x 49.2
Rotary Table (B-Axis)
Max. Rotation Speed - min-1 - 20
5th Axis (A-Axis)
Type - Tilting Head
Tilting Angle - Degrees - 175 (+80/-95)
Spindle Unit
Tool-Taper - HSK / ISO / CAPTO
Speed Range - min-1 - from 6.000 up to 30.000
Tool-Magazine
Capacity (up to)1 - No. - 80 (999)
Available Configurations
Single-Pallet / Twin-Pallet / Multi-Pallet / FMS
