Used MCM CLOCK 800 EVO | 5-Axes Multitasking
Have one to sell?
ConditionUsed

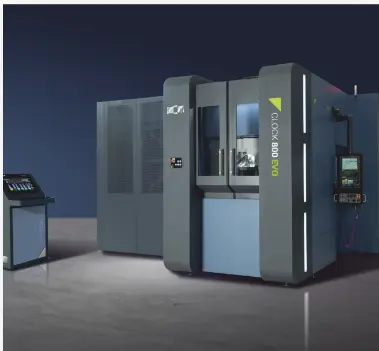

CLOCK 800 EVO: the most compact machining center of the CLOCK EVO line
CLOCK 800 EVO is the most compact horizontal machining center of the CLOCK EVO line, characterized by a volume of 800 mm and by the pallet dimensions: 500 x 500 mm, 500 x 630 mm, or Ø 630 mm.
Another feature is that of being able to embody the innovative features of the CLOCK EVO line in the smallest possible space.
CLOCK 800 EVO
Axes Configuration - 5-Axes Multitasking
Process Technology - Milling, Turning, Grinding
Working Area
X-Axis Stroke - mm | in. - 800 | 31.5
Y-Axis Stroke - mm | in. - 800 | 31.5
Z-Axis Stroke - mm | in. - 800 | 31.5
X/Y/Z Axis Rapid Feed - m/min | ipm - 75 | 2,952.8
Pallet
Option 1 - mm | in. - 630 | 24.8
Option 2 (2) -
Rotary Table (B-Axis) - Max. Rotation Speed min-1 - 100 / 1.200
5th Axis (A-Axis) Type – Tilting Table
Tilting Angle Degrees – 140 (+35/-105)
Spindle Unit - Tool-Taper - HSK / ISO / CAPTO
Speed Range - min-1 - from 10.000 up to 30.000
Tool-Magazine - Capacity (up to)1- N. - 80 (500+)
Available Configurations - Single-Pallet / Twin-Pallet / Multi-Pallet / FMS
