New MCM TANK.G 3000 | 4-Axes Horizontal Machining Center
Have one to sell?
ConditionNew
New

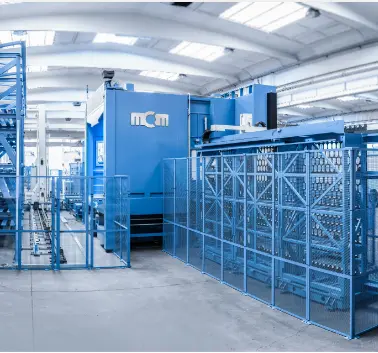

TANK.G 3000: the largest machining center of the TANK.G line
TANK.G 3000 is characterized by the value of the X-axis stroke of 3.000 mm and by the pallet dimensions: 1.250 x 1.250 mm or 1.250 x 1.600 mm.
metric | imperial
TANK.G 3000
Axes Configuration - 4-Axes
Process Technology - Milling
Working Area
X-Axis Stroke - mm | in. - 3.000 | 118.1
Y-Axis Stroke - mm | in. - 2.500 | 98.4
Z-Axis Stroke - mm | in. - 2.500 | 98.4
X/Y/Z Axis Rapid Feed - m/min | ipm - 40 – 40 – 32 | 1,574.8 – 1,574.8 – 1,259.8
Pallet
Option 1 - mm | in. - 1.250 x 1.250 | 49.2 x 49.2
Option 2 (2) - mm | in. - 1.250 x 1.600 | 49.2 x 63.0
Rotary Table (B-Axis)
Max. Rotation Speed - min-1 - 8 / 15
5th Axis (A-Axis)
Type - –
Tilting Angle Degrees - –
Spindle Unit
Tool-Taper - HSK / ISO
Speed Range - min-1 - from 6.000 up to 30.000
Tool-Magazine
Capacity (up to)1 - No. - 80 (999)
Available Configurations
Single-Pallet / Twin-Pallet / Multi-Pallet / FMS
