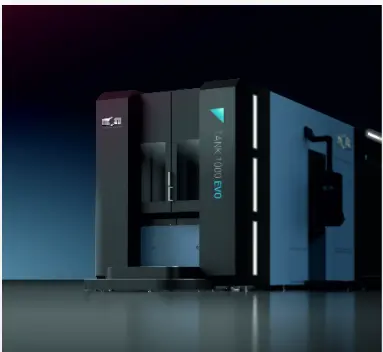

New MCM TANK 1000 EVO | 5-Axes Horizontal Machining Center
Have one to sell?
ConditionNew
New
The new horizontal machining center that increases the TANK line
characterized by a high capacity on the table and by the pallet dimensions: : 630 x 630 mm, 630 x 800 mm, Ø800 mm.
It is available with two different types of head: tilting head as A-axis and tilting head as B-axis.
metric | imperial
TANK 1000 EVO
Axes Configuration - 5-Axes
Process Technology - Milling
Working Area
X-Axis Stroke - mm | in. - 1.200 | 47.2
Y-Axis Stroke - mm | in. - 1.000 | 39.4
Z-Axis Stroke - mm | in. - 1.100 | 43.3
X/Y/Z Axis Rapid Feed - m/min | ipm - 75 | 2,952.8
Pallet
Option 1 - mm | in. - 630 x 630 | 24.8 x 24.8
Option 2 (2) - mm | in. - 630 x 800 | 24.8 x 31.5
Rotary Table (B-Axis) - Max. Rotation Speed - min-1 - 100
5th Axis (A-Axis) - Type - Tilting Head
Tilting Angle - Degrees - 180 (+80/-100)
Spindle Unit - Tool-Taper - HSK / ISO / CAPTO
Speed Range - min-1 - from 14.000 up to 18.000
Tool-Magazine - Capacity (up to)1 - No. 89 (999+)
Available Configurations - Single-Pallet / Twin-Pallet / Multi-Pallet / FMS
