New MCM CLOCK 1200 EVO | 4-Axes Horizontal Machining Center
Have one to sell?
ConditionNew
New
Flexibility, high dynamics, rigidity and accuracy in a modern, stylish, eco-friendly design.

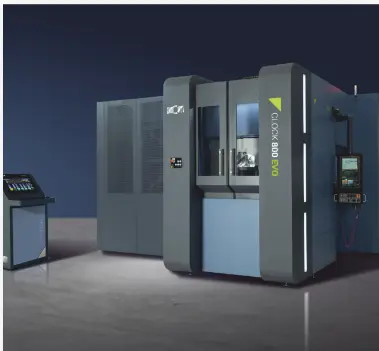

Ideal for machining small to medium-sized complex components, it comes in three different sizes identified by the X axis stroke: CLOCK 800 EVO – CLOCK 1000 EVO – CLOCK 1200 EVO, available in different configurations: SINGLE PALLET, TWIN-PALLET, MULTIPALLET and FMS.
Each solution can in turn be configured in versions with 4 or 5 axis for milling, or with 5 axis for milling, turning, grinding and Power skiving (Multitasking).
The compact design makes the CLOCK EVO horizontal machining centers easy and quick to install, without sacrificing the high performance typical of MCM Machining Centers.
The complete digital equipment makes the CLOCK EVO line at the forefront of the principles of Industry 4.0 and Smart Manufacturing.
metric | imperial
CLOCK 1200 EVO
Axes Configuration - 4-Axes
Process Technology - Milling
Working Area
X-Axis Stroke - mm | in. - 1.200 | 47.2
Y-Axis Stroke - mm | in. - 1.000 | 39.4
Z-Axis Stroke - mm | in. - 1.100 | 43.3
X/Y/Z Axis Rapid Feed - m/min | ipm - 75 | 2,952.8
Pallet
Option 1 - mm | in. - 630 x 630 | 24.8 x 24.8
Option 2 (2) - mm | in. - 630 x 800 | 24.8 x 31.5
Rotary Table (B-Axis) - Max. Rotation Speed - min-1- 100
5th Axis (A-Axis) Type –
Tilting Angle Degrees –
Spindle Unit Tool-Taper - HSK / ISO / CAPTO
Speed Range - min-1 - from 8.000 up to 30.000
Tool-Magazine - Capacity (up to)1- No. - 80 (500+)
Available Configurations - Single-Pallet / Twin-Pallet / Multi-Pallet / FMS
