New UNISIGN UNITWIN | Multitasking Machining Centers
Have one to sell?
ConditionNew
New
Unitwin
2powerful main spindles, 4.5minutes per axle!
World leaderin front axles since 1996
Front axles in rapid tempo

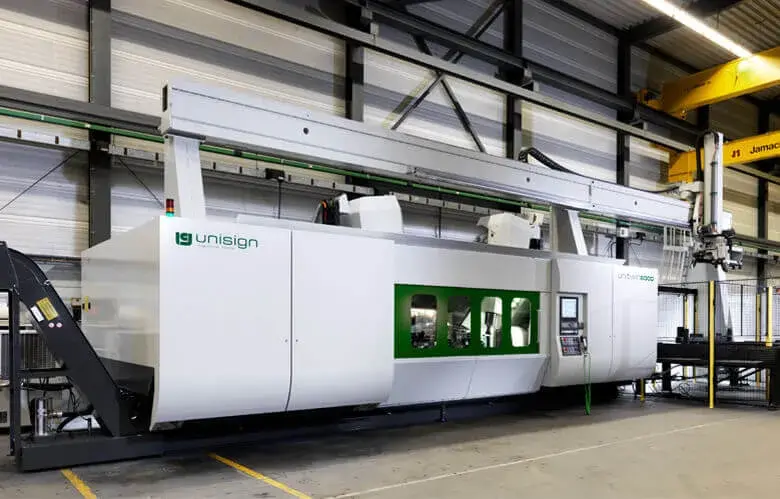

For OEMs wanting real productivity, the Unitwin is a state-of-the-art CNC machining centre. It cuts cycle times on axle manufacture dramatically – down to as little as 4½ minutes per axle! Equipped with twin spindles that operate either simultaneously or independently, this unique all-in-one solution can machine various kingpin angles. And because the spindles tilt, the Unitwin can perform all sorts of operations: milling, drilling, boring & reaming. It’s a complete CNC machining centre, offering an excellent return on investment.
Work area
X-axis 4.200 mm
Y-axis 600 mm
Z-axis 500 mm
Spindle
Gear box driven spindle (2x) 51 kW
6.000 min-1
1.000 Nm
B-axis tilting ± 15 °
Various
Tooling
Taper size HSK-A100 / SK50
Number of pockets # 2x39
Tool change time 8 sec
Speed
Rapid traverse up to 40.000 mm/min
Feed Rate up to 40.000 mm/min
Accessories
Two powerful main spindles standard
Automatic loading standard
Fixture for range of beams o
Tool monitoring for both spindles o
