New UNISIGN UNICOM7000-XL | Multitasking Machining Centers
Have one to sell?
ConditionNew
New

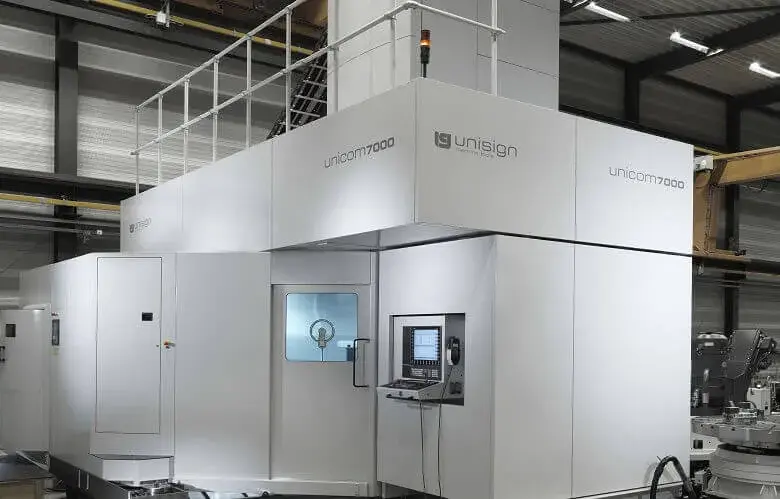

Unicom7000-XL
4 m Y-axis
4 m diameter
Big advantages
This extra large capacity machining solution for turning and milling really big parts offers more clearance in the Y-axis and can be stepped up in the X-axis to 5 metres. Like the Unicom 7000, this multi-task portal machine manages to deliver high output without sacrificing accuracy or quality. The standard configuration includes a vertical carousel turning station, head changer and pallet changer for big pallet sizes. With less handling and fewer setups lead times are shorter, boosting productivity of extra large work pieces.
Work Area
X-axis 3.450 / 5.000 mm
Y-axis 2.500 / 4.000 mm
Z-axis 1.600 mm
Vertical clearance 2.000 / 2.300 mm
Table
Table size 2.000 / 2.500 / 3.000 / 4.000 ø mm
Swing circle 3.000 / 4.500 ø mm
Spindle
Gear box driven spindle and values 42 Kw
6.000 min-1
1.600 Nm
Carousel turning station 70 / 95 kW
33.000 / 70.000 Nm
Various
Tooling
Taper size HSK-A100 / Capto C8
Number of pockets # 97 - 200
Tool change time 10 sec
Speed
Rapid traverse 40.000 mm/min
Feed Rate 5 - 40.000 mm/min
Accessories
Pallet changer standard
Right angular indexing head standard
Universal indexing head o
5-axes configuration o
In-process measuring o
