New UNISIGN UNICOM7000 | Multitasking Machining Centers
Have one to sell?
ConditionNew
New

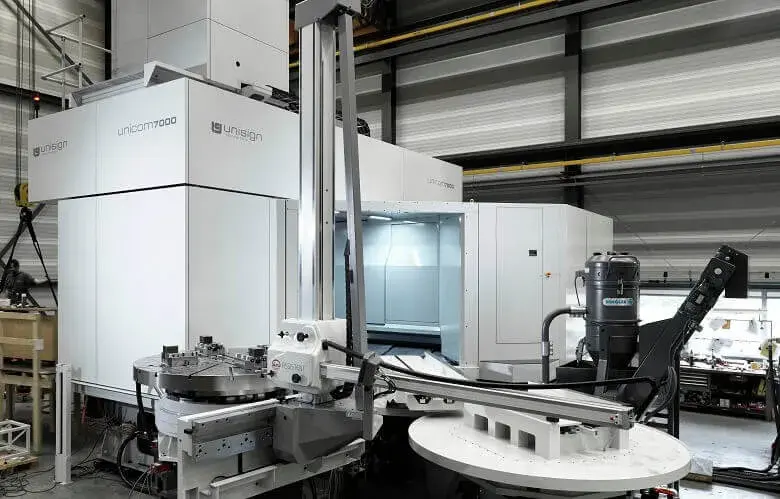

Unicom7000
Powerful turning with 5-axis machining
High productivity on taller components
More productivity
More capacity and more clearance in the working envelope…the Unicom 7000 is all about achieving more productivity for larger components. Like its brother – the Unicom 6000 – this multi-task portal machine delivers the output without sacrificing the quality. What makes it different from the 6000 is that the standard configuration includes a vertical carousel station and pallet changer, and allows for much bigger pallet sizes. With fewer setups and shorter lead times, this extremely accurate machine is a favourite for taking on big work pieces in high output manufacturing.
Work Area
X-axis 2.675 mm
Y-axis 2.300 mm
Z-axis 1.600 mm
Vertical clearance 1.800 / 2.000 / 2.200 mm
Table
Table size 1.250 / 1.600 / 1.800 ø mm
Swing circle 2.000 / 2.200 ø mm
Spindle
Gear box driven spindle and values 42 kW
6.000 min-1
1.600 Nm
Carousel turning station 70 / 95 kW
25.000 / 38.000 Nm
Various
Tooling
Taper size HSK-A100 / Capto C8
Number of pockets # 97-200
Tool change time 10 sec
Speed
Rapid traverse 40.000 mm/min
Feed Rate 5-40.000 mm/min
Accessories
Pallet changer standard
Right angular indexing head standard
Universal indexing head o
5-axes configuration o
In-process measuring o
