ConditionNew
New
Unicom6000
Automatic pallet changer for
high uptime
Ideal for
multi-tasking
on complex components
Quality and productivity

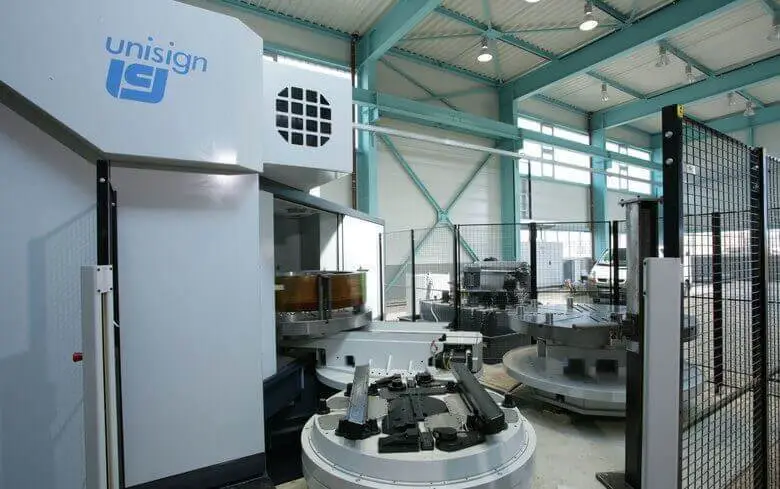

The UNICOM6000 is a multi-task machining centre that combines quality and productivity. It is capable of performing milling, drilling and vertical turning operations with ease. This workhorse machine has the distinct advantage of a ram design that allows ‘plunging’ inside the component with short turning tools. It can be equipped with several machining heads, which are stored in designated pick-up stations. For horizontal machining operations, an indexable right angular head is available and to create even further flexibility, a universal head with B- and C-axis can be integrated. The automatic pallet changer reduces loading times and ensures a high uptime to boost productivity. Even with its focus on output, this machine makes no compromise on accuracy.
Work Area
X-axis 1.950mm
Y-axis 1.425 mm
Z-axis 1.000 / 1.250 mm
Vertical clearnance 1.300 mm
Table
Table size 1.250 / 1.600 / 1.800 ø mm
Swing circle 2.000 ø mm
Spindle
Gear box driven spindle and values 54 kW
6.000 min-1
1.000 Nm
Carousel turning station 70 / 95 kW
25.000 / 38.000 Nm
Various
Tooling
Taper size HSK-A100 / Capto C8
Number of pockets # 80-202
Tool change time 10 sec
Speed
Rapid traverse 30.000 mm/min
Feed Rate 5 - 30.000 mm/min
Accessories
Pallet changer standard
Right angular indexing head o
Universal indexing head o
Various turning tool adaptors o
In-process measuring o
