New UNISIGN UNIPORT7000 | Flexible Portal CNC Machining Centre
Have one to sell?
ConditionNew
New
Uniport7000
5-axis machining capability
Superb rigidity and accuracy
Flexible and economic

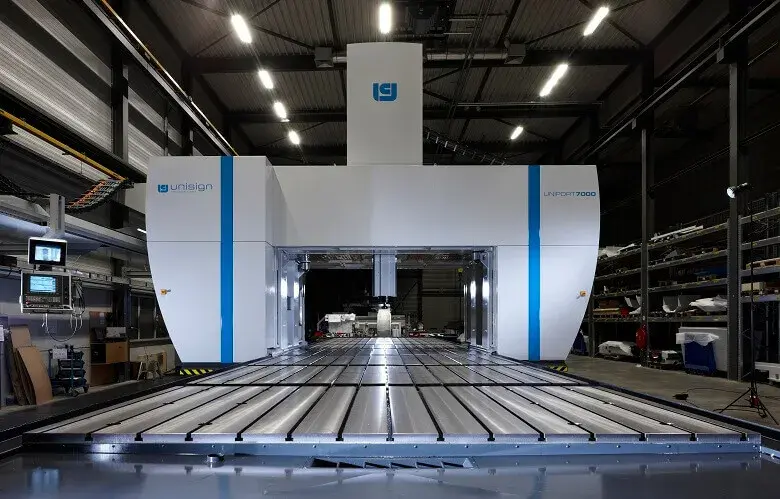

The Uniport 7000 is the economic solution to flexible manufacturing. This high-rail gantry machine with its travelling bridge and stationary table is our most flexible machine platform. It will perform 5-sided machining inside the component and has short changeover times and a large working envelope, making it a truly cost-effective production choice for a really wide range of applications. The innovative ‘box-in-box’ construction guarantees superb rigidity and very stable and accurate production processes.
Work area
X-axis 6.000 - 24.000+ mm
Y-axis 2.500 - 6.500 mm
Z-axis 1.600 mm
Vertical clearance 1.500 / 1.750 / 2.000 / 2.500 mm
Width between columns 2.000 - 6.000 mm
Spindle
Gear box driven spindle 42/73 kW
6.000 min-1
1.600 Nm
Various
Tooling
Taper size HSK-A100
Number of pockets # 48-330
Tool change time 10 sec
Speed
Rapid traverse 40.000 mm/min
Feed Rate 5 - 40.000 mm/min
Accessories
Right angular indexing head standard
Universal indexing head o
5-axes configuration o
Carousel turning station o
Raised guideways o
Siemens / Heidenhain o
