New UNISIGN UNIPORT6000-HV | 5-Axis Portal CNC Machining Centre
Have one to sell?
ConditionNew
New
Uniport6000-HV
Extreme machining angles
Simultaneous 5-axis capability
True flexibility

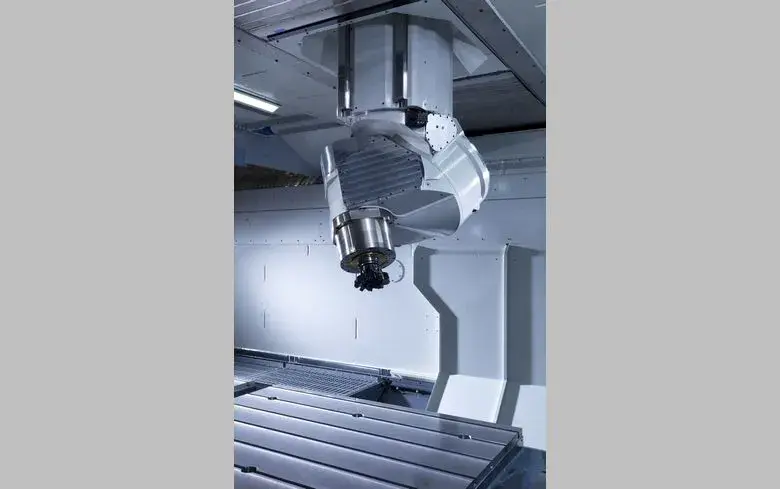

The HV (horizontal/vertical) variant of the Uniport 6000 is a truly cost-effective choice for 5-axis CNC machining of large components. In addition to its generous daylight opening, the Uniport 6000-HV features a tilting nutator head. This can travel through an angle of 100°, going from a vertical plane to 10° over the horizontal, making it possible to adopt even the most extreme machining angles. Coupled with outstanding price/performance, this compact portal machine is a must if you’re looking for true flexibility.
Work Area
X-axis 4.000 - 24.000+ mm
Y-axis 2.500 - 6.000 mm
Z-axis 1.500 / 1.800 mm
Vertical clearance 1.700 / 2.000 mm
Distance spindle nose to table vertical position 200 - 2.000 mm
Distance spindle nose to table horizontal position 190 - 1.950 mm
Width between columns 1.500 - 4.000 mm
Spindle
Nutator head with motor spindle 73/82 kW
7.000/15.000 min-1
700/390 Nm
B-axis ±110
C-axis ±185
Various
Tooling
Taper size HSK-A100
Number of pockets # 37-170
Tool change time 12 sec
Speed
Rapid traverse 40.000 mm/min
Feed Rate 5-40.000 mm/min
Speed B- and C-axis 15.000 min-1
Accessories
Operator platform o
Pendulum mode o
Tool measuring and tool break via laser o
Siemens / Heidenhain o
