New UNISIGN UNIPORT6000 | Gantry Machining Centers (incld. Bridge & Double Column)
Have one to sell?
ConditionNew
New
Uniport6000
Economical manufacture of large components
5-sided machining and vertical turning
Powerful all-rounder
The Uniport 6000 is the ideal choice for multi-sided manufacturing of large components in the most economical way. It is available in gantry configuration or as a moving table with pallet changer. The high vertical clearance and an optional carousel turning station address even the most challenging workpieces. The choice of machining heads enables milling, drilling, tapping, turning and even grinding and rolling – all in a single, small footprint machine.
Work Area
X-axis 4.000 - 24.000+ mm
Y-axis 1.500 - 5.000 mm
Z-axis 1.000 / 1.250 mm
Vertical clearance 1.300 / 1.800 mm
Width between columns 1.500 - 5.000 mm
Spindle
Gear box driven spindle 36/54 kW
6.000 min-1
720/1000 Nm
Various
Tooling
Taper size HSK-A100 / SK50 / Capto C8
Number of pockets # 29-215
Tool change time 10 sec
Speed
Rapid traverse 40.000 mm/min
Feed Rate 5 - 40.000 mm/min
Accessories

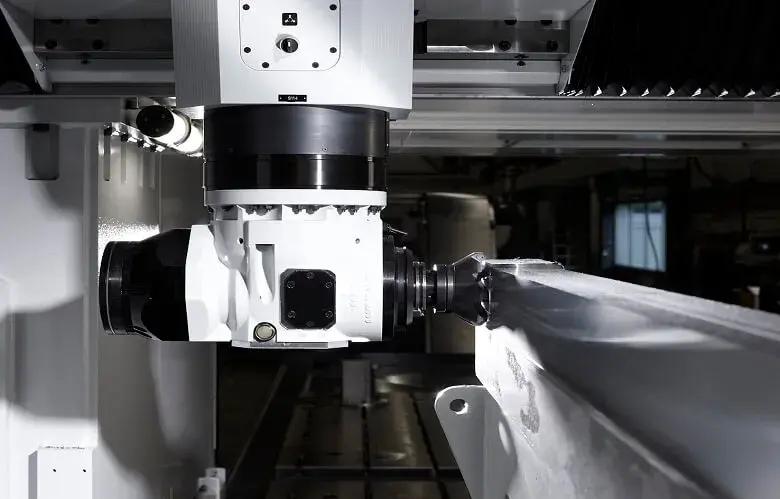

Right angular indexing head o
Universal indexing head o
Carousel turning station o
Pendulum mode o
Siemens / Heidenhain o
