Uniport4000
Multi-sided machining in single set-up
Large working areasmall footprint
Flexible all-rounder

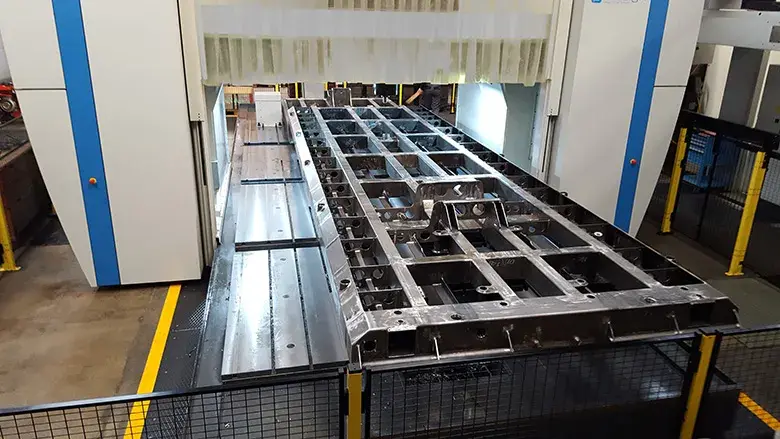

The UNIPORT4000 is the smallest model from our premium gantry machine series. It takes up relatively little space on the shop floor thanks to its travelling portal bridge. The UNIPORT4000 was already renowned for its outstanding vertical machining performance. But now with an even higher clearance plus a right-angular head available as an option its functionality has been expanded. Offering you even more flexibility and huge gains in processing times.
Work area
X-axis 4.000 - 24.000+ mm
Y-axis 1.500 - 3.500 mm
Z-axis 500 / 600 / 750 mm
Vertical clearance 610 / 750 / 1.000 / 1.250 mm
Width between column 1.550 - 3.550 mm
Spindle
Direct driven spindle 36/58 kW
12.000/16.000 min-1
180 / 135 Nm
Various
Tooling
Taper size HSK-A63
Number of pockets # 29-102
Tool change time 8 sec
Speed
Rapid traverse 40.000 mm/min
Feed Rate 5 - 40.000 mm/min
Accessories
Linear scales o
Pendulum mode o
Tool measuring and tool break via laser o
Siemens / Heidenhain o
