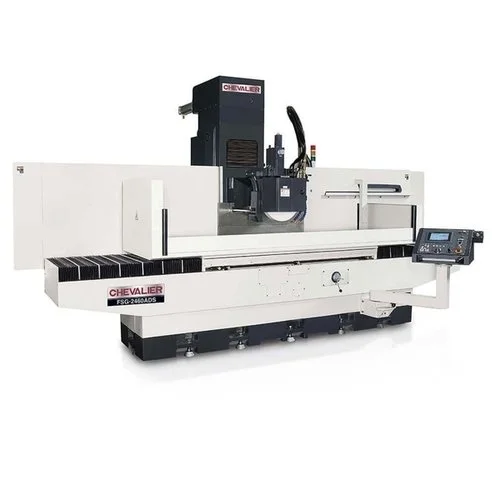

New CHEVALIER FSG-24120ADS | Reciprocating Surface Grinders

Description

Over wheel-parallel dressing with automatic compensation system helps to reduce cycle time and minimize operator involvement.
PLC touch screen 3 axes fully automatic surface and plunge grinding system
“New” 8” TFT high resolution 65536 color control to ensure ease of operation
High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding.
Wheel head will raise up to end, start and reference position
Table parks at left or right side after cycle is completed
I/O diagnosis & alarm display
To achieve better accuracy, the number of free passes between down-feeds can be preset depending on work piece material.
