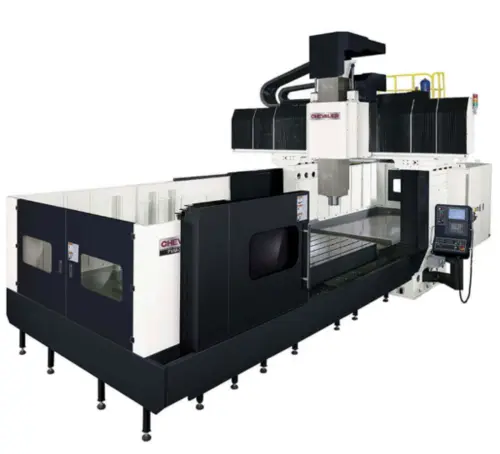

New CHEVALIER FVM-26DCL | Universal Machining Centers

Description

The heavily ribbed cast-iron base with Meehanite® casting ensures the best rigidity and stability.
The big size column and box-type beam construction provide better support and damping.
The entire travel of the table is fully supported by two heavy-duty roller guideways of the X-axis, providing a better acceleration and preventing a stick-slip problem.
The 400 x 400mm RAM design on Z- axis gives the machine excellent support during the cutting process.
The spindle motor, ball screw and double counter-balancing cylinders are all properly located at the best positions to avoid unequal torque while ensuring the best structural accuracy.
A forced circulation cooling and lubrication system is applied to the spindle, bearing and gearbox to reduce thermal strain on the spindle and extend the life span.
