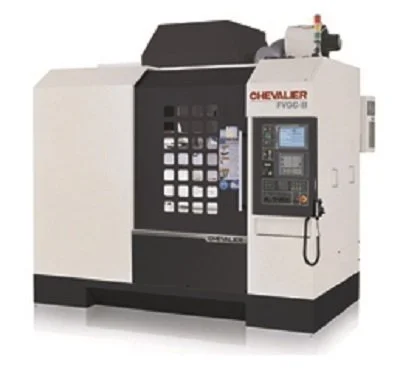

New CHEVALIER FVGC-II | Vertical Universal Grinders

Description

The series has linear-way design on saddle and table, with Big-Plus CT40 spindle taper. This vertical grinding center features a square way column, linear way design on saddle and table. The optional table-mount diamond-disc dresser for the grinding wheel can be dressed in various forms and shapes by using the devise. The machine offers a spindle with air-purge design to protect foreign material from flying into the spindle. The air-conditioned electrical cabinet eliminates interior heat, keeping the cabinet clean and dry. That results in stable and reliable electrical components, prolonging the longevity of the electrical system. The FVGC-II offers XYZ axis with a special-sealed-type ballscrew and XY-axis linear way with protection cover.

Description FVGC-II
Table Size 47.2" x 20"
Control FANUC 18-iMC
T-Slots (no. x W x dis.) 5" x 0.709" x 3.937"
Table Load 1,320lbs
X-Travel 31.5"
Y-Travel 18.5"
Z-Travel 20.1"
Spindle Nose to Table 5.9"~2.6"
Spindle Center to Column 22.4"
Spindle Taper CT40
Spindle Speed (Direct Couple) 12,000rpm
Spindle Diameter 2.8"
Rapid on X/Y/Z Axes 1180/1180/787ipm
Position Accuracy 0.0002"
Repeatability 0.0001"
Tool Capacity - 6.5" Wheel 8
Tool Capacity - 3" 24
